VivaChek™ Fad Pro
Wireless Connectivity Meter
For Hospital Use

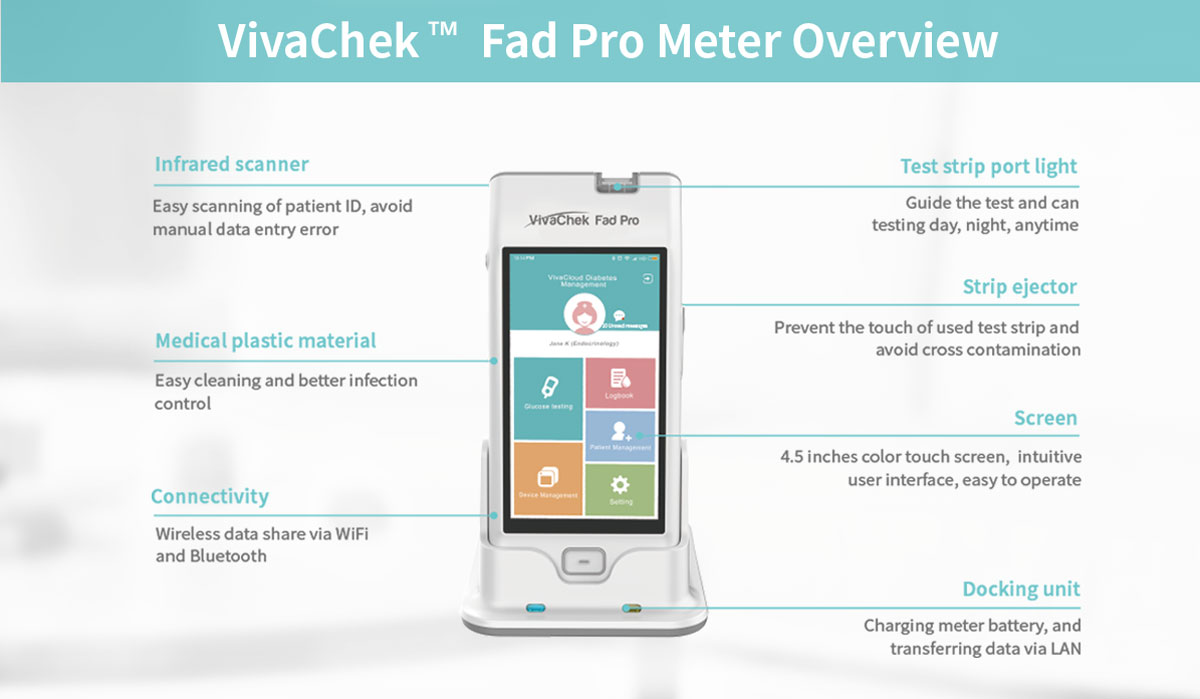

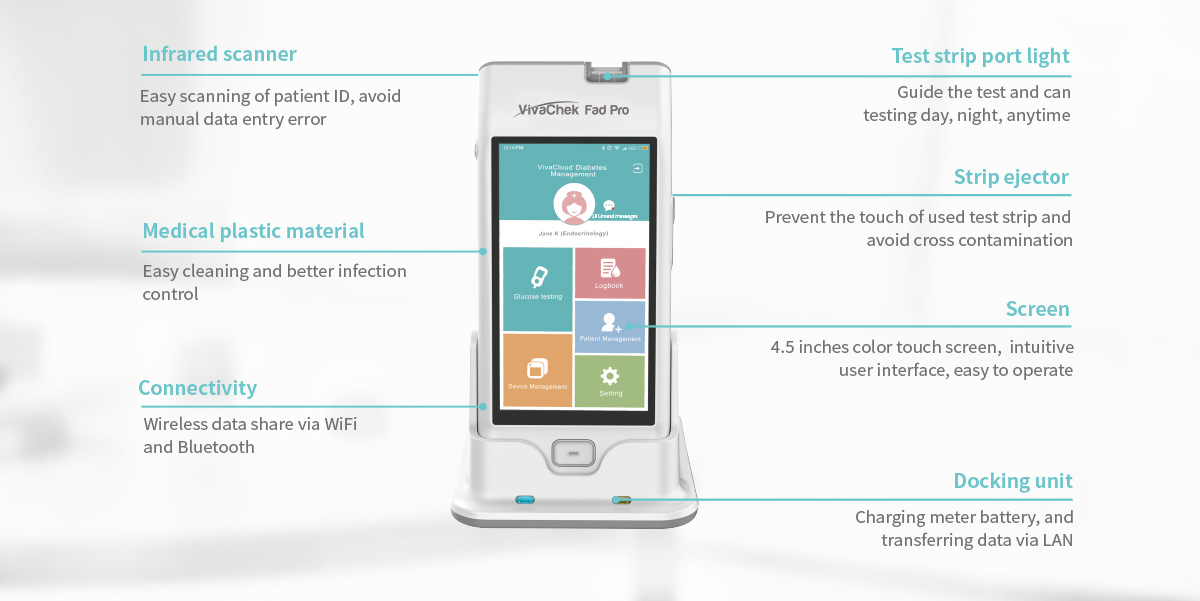

VivaChek ™ Fad Pro Meter Overview
VivaChek ™ Fad strips
Laboratory accuracy
Can test neonates, pregnantwomen, anemia people etc.
5s testing time
0.5 μL blood sample
Insufficient sample setection
Auto sample setection
Eliminates interferences
Wide operating temperature

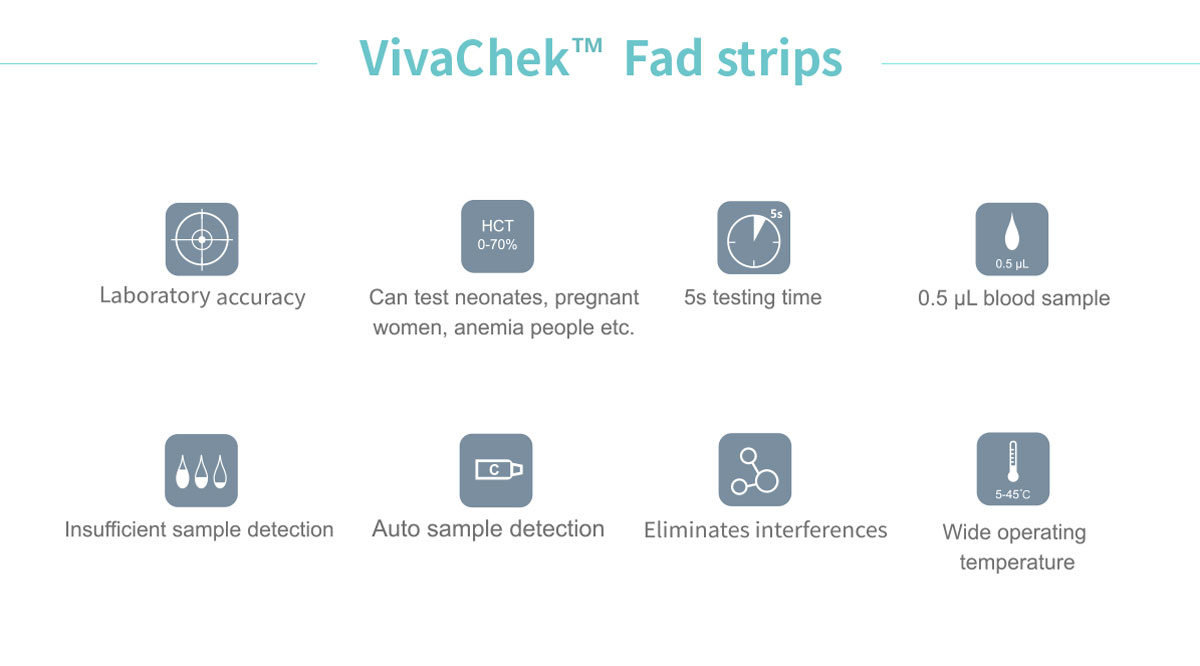

VivaChek™ Fad strips
-
Laboratory accuracy
-
Can test neonates, pregnant women, anemia people etc.
-
5s testing time
-
0.5 μL blood sample
-
Insufficient sample setection
-
Auto sample setection
-
Eliminates interferences
-
Wide operating temperature

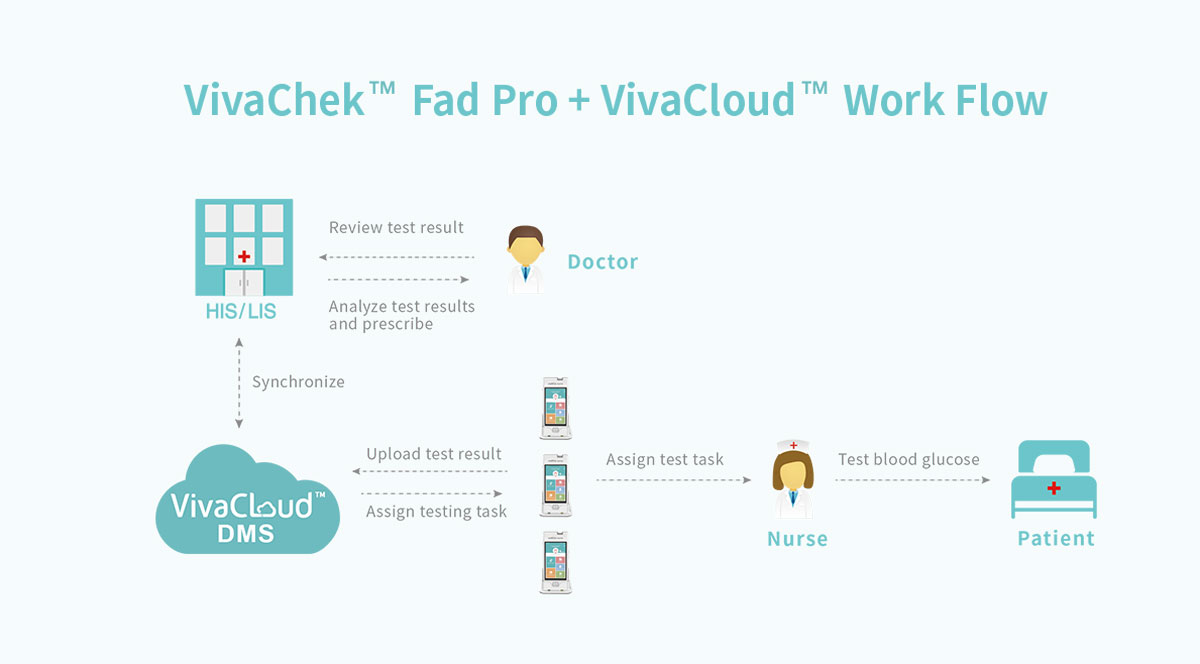

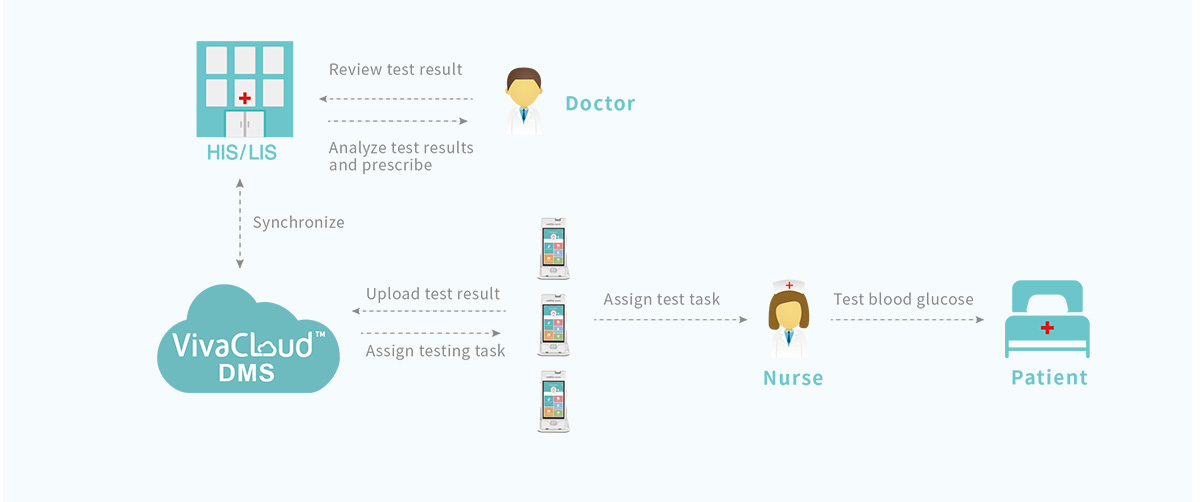

VivaChek ™ Fad Pro + VivaCloud ™ Work Flow
Specification
| Measurement principle | Electrochemical detection technique |
| Measurement range | 10 - 600 mg/dL (0.6 - 33.3 mmol/L) |
| Enzyme | Glucose dehydrogenase(GDH-FAD) |
| Sample volume | About 0.5μL |
| Test time | About 5 seconds |
| Hematocrit range | 0-70% |
| Calibration | Plasma equivalent |
| Sample type | Fresh whole blood (capillary blood, venous blood, arterial blood) |
| Operation temperature | 5 - 45°C |
| Operation humidity | 10% - 90% |
| Memory | 8G(3000 patients/ 50000 tests/ 2000 QC tests/ 1000 operators) |
| Screen | 4.5-inch color touch screen |
| Barcode scanner | Infrared barcode scanner |
| Battery | 2300mAh rechargeable lithium battery(4.5hrs to full charge) |
| Battery life | 100 tests |
| Input voltage | 9V DC |
| Input frequency | DC |
| Input current | 2A(max) |
| Dimension | 158.4x73.2x21.2 mm |
| Weight | 150g(without docking unit) |
| Data transfer | WiFi, LAN & Bluetooth |
| Strip ejector |
Yes
|

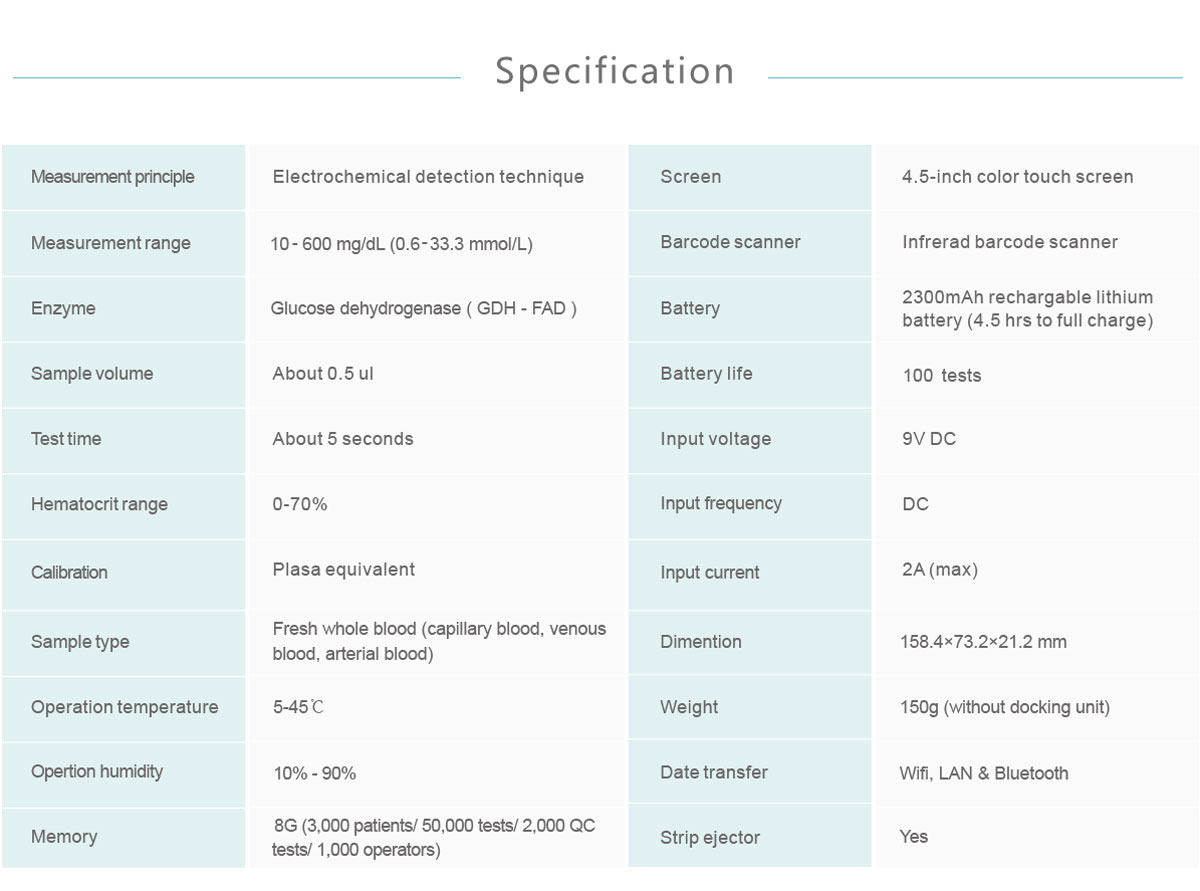

Specification
| Measurement principle | Electrochemical detection technique |
| Measurement range | 10-600 mg/dL (0.6-33.3 mmol/L) |
| Enzyme | Glucose dehydrogenase (GDH-FAD) |
| Sample volume | About 0.5 μL |
| Test time | About 5 seconds |
| Hematocrit range | 0-70% |
| Calibration | Plasa equivalent |
| Sample type | Fresh whole blood (capillary blood,venous blood,arterial blood) |
| Operation temperature | 5°C - 45°C (41°F -113°F) |
| Operation humidity | 10% - 90% |
| Memory | 8G (3,000 patients/50,000 tests/2,000 QC tests/1,000 operators) |
| Screen | 4.5-inch color touch screen |
| Barcode scanner | Infrerad barcode scanner |
| Battery | 2300mAh rechargable lithlum battery (4.5 hrs to full charge) |
| Battery life | 100 tests |
| Input voltage | 9V DC |
| Input frequency | DC |
| Input current | 2A(max) |
| Dimention | 158.4x73.2x21.2 mm |
| Weight | 150g (without docking out) |
| Data transfer | Wifi,LAN,Bluetooth |
| Strip ejector | Yes |
