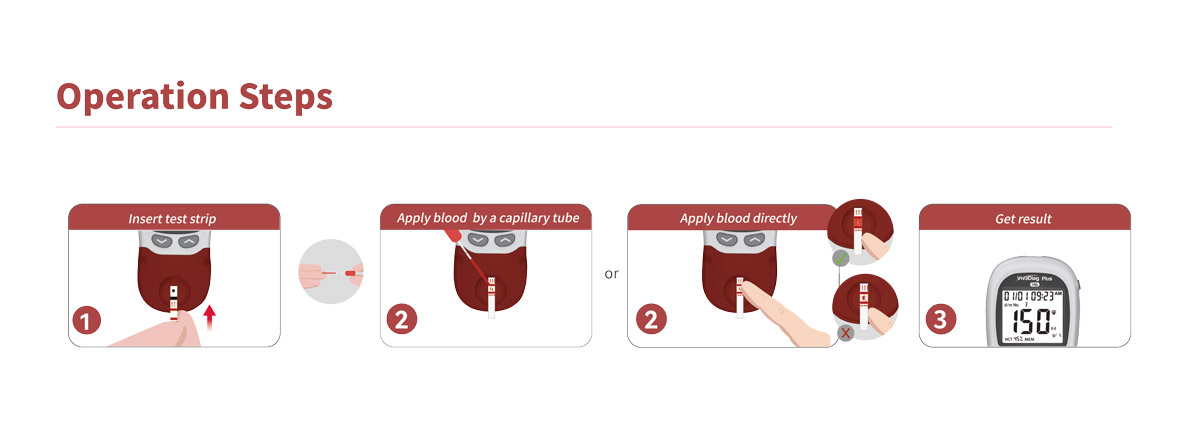

Operation

  • Insert test strip

  • Apply blood
    by a capillary tube

  • Or
  • Apply blood directly

  • Get result

Performance

  • -Accuracy

  • -Precision

    Test Level(n=90) Level Ⅰ Level Ⅱ Level Ⅲ
    Mean(g/dL) 5.05 12.5 18.9
    SD(g/dL) 0.17 / /
    CV(%) / 1.5 1.6

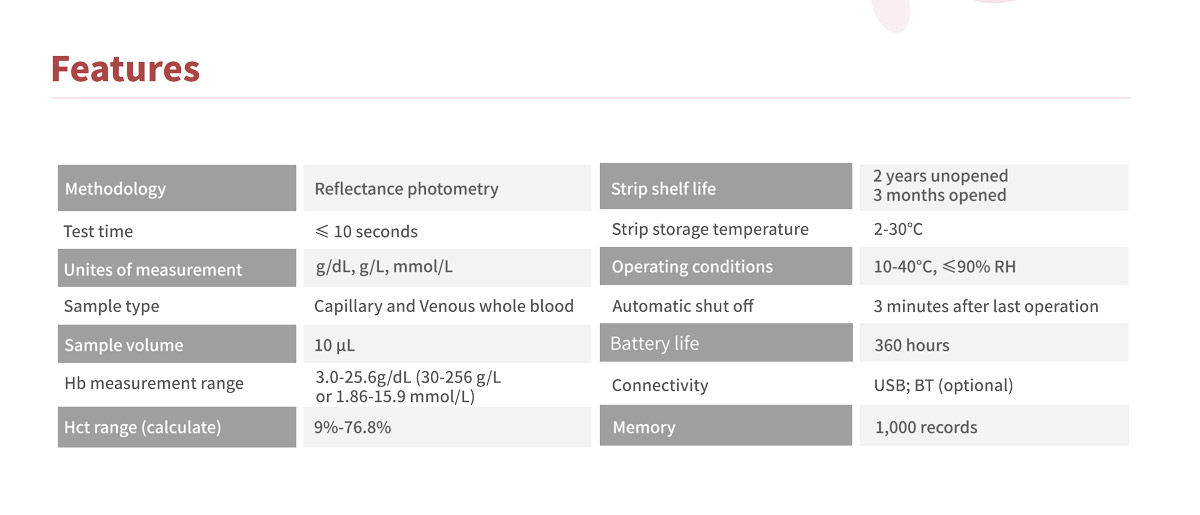

Specifications

Methodology Reflectance photometry strip shelf life 2 years unopened
3 months opened
Test time ≤10 seconds strip storage conditions 2-30℃
Units of measurement g/dL, g/L, mmol/L operating conditions 10-40℃, ≤90% RH
Sample type Capillary and Venous whole blood Automatic shut off 3 minutes after last operation
Sample volume 10μL Battery life 360 hours
Hb measurement range 3.0-25.6g/dL(30-256g/L
or 1.86-15.9mmoml/L)
Connectvity USB; BT(optional)
Hct range(calculate) 9%-76.8% Memory 1,000 records

Packing

Product Name Catalogue Components Package Weight size(mm)

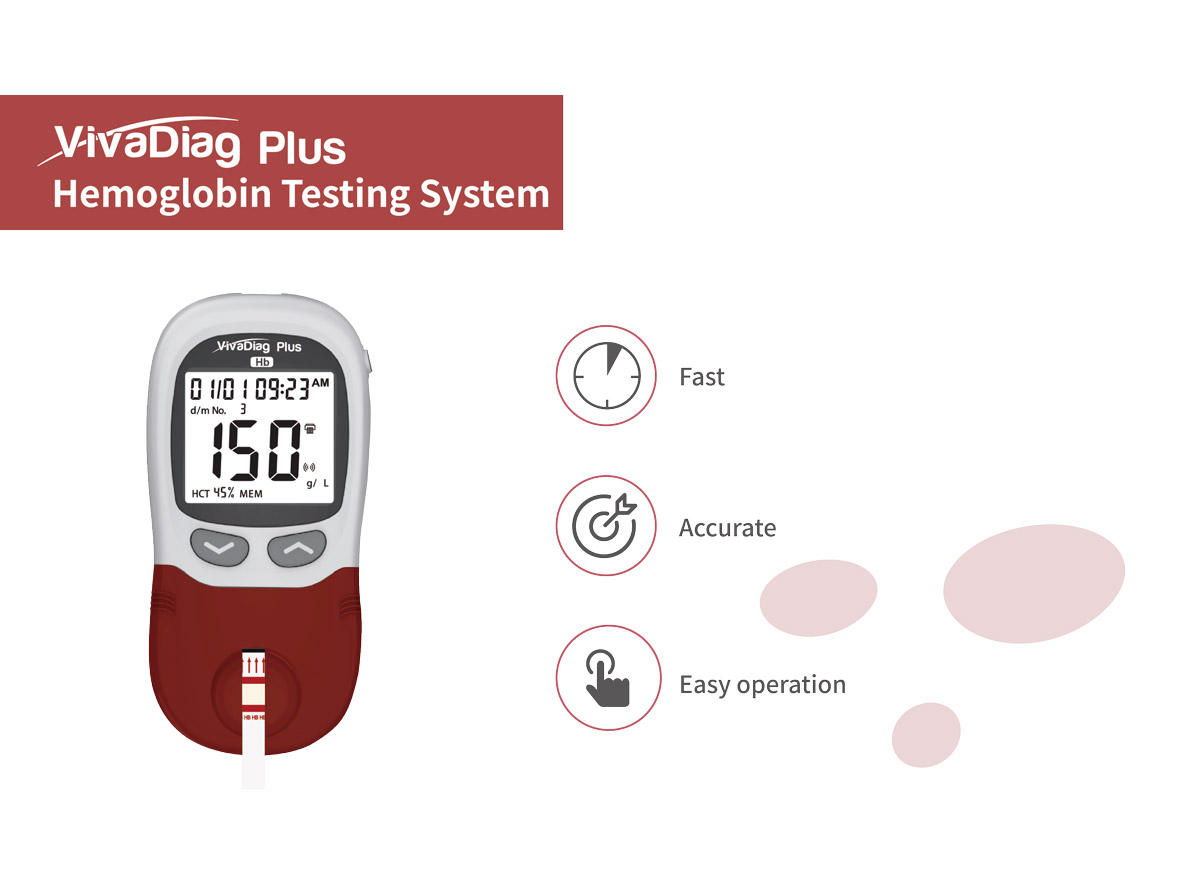

VivaDiag™ Plus
Hemoglobin Testing System
VOM01-011 25 Test strips
25 Lancets
25 Pipettes
3 AAA batteries
2 Control strips
1 Meter
1 Lancing device
1 Code chip
1 Mini USB cable
1 User manual
1 Carrying case

18 Kits/Carton 6.4kg/14.1lbs. 455*385*200
VivaDiag™ Plus
Hemoglobin Meter
VOM01-012 3 AAA batteries
1 Meter
1 User manual
1 Carrying case

18 Kits/Carton 6.4kg/14.1lbs. 455*385*200
VivaDiag™ Plus
Hemoglobin Test Strips
VOS01-011 50 Test strips
50 Pipettes
1 Code chip
1 Package insert
18 Kits/Carton 25 Pcs/Canister
2 Canisters (50 pcs)/Kit
120 Kits(6000 pcs)/Carton
360*355*285
