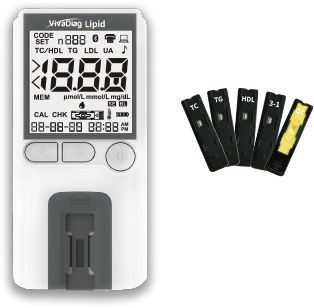

VivaDiag TM Lipid Testing System

VivaDiag TM Lipid Testing System provide a fast reliable measurement. It helps people with metabolic disorders involving lipids and lipoproteins to manage their lipid levels.

Lipid Testing System

Hospital | Clinics | Pharmacy

  • Smart Testing
    Individual: TC, TG, HDL
    3-1 lipid panel: TC, TG, HDL, LDL, TC/HDL ratio
  • Fast Results
    2 minutes
  • Small Blood Volume
    Lipid: 25 μL
    Individual: 10 μL
Clinical performance
- Precision
Total precision Level I (N=30) Level II (N=30) Level III (N=30)
Mean (mg/dL) 74.4 257.0 332.7
SD (mg/dL) or CV (%) 1.9 1.9% 2.1%

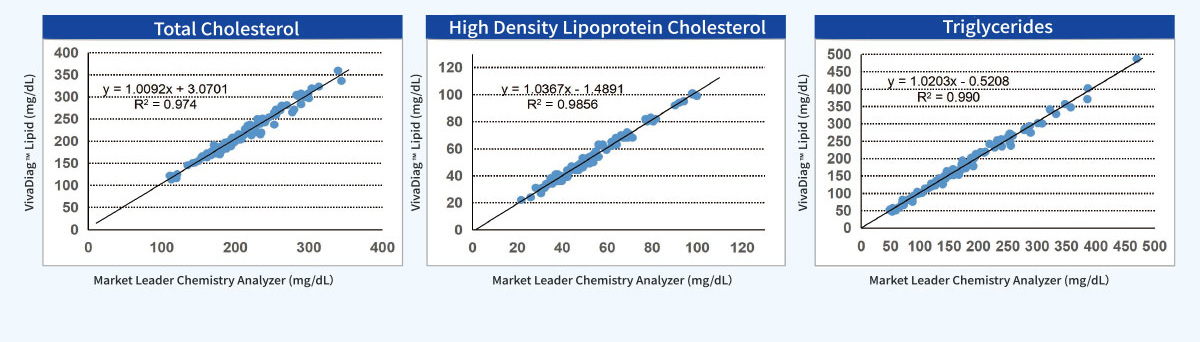

- Accuracy

Specification

Methodology Reflectance photometer
Test time 2 minutes
Measurement range TC: 100-500 mg/dL (2.59-12.93 mmol/L)
HDL: 15-120 mg/dL (0.39-3.10 mmol/L)
TG: 45-650 mg/dL (0.51-7.34 mmol/L)
Units of measurement mg/dL, mmol/L
Storage temperature Meter: 0-50ºC; test device: 2-30ºC
Connectivity Mini USB
Test item TC, TG, HDL, LDL, TC/HDL ratio
Sample type Whole blood (capillary, venous), serum or plasma
Reference values TC<20 mg/dL (<5.2 mmol/L)
HDL≥40 mg/dL (≥1.0 mmol/L)
TG<150 mg/dL (<1.7 mmol/L)
LDL<130 mg/dL (<3.4 mmol/L)
Operating temperature 15-40ºC
Test device self life 18 months
Memory 200 records with date/time

Specification

Methodology Reflectance photometer
Test item TC, TG, HDL, LDL, TC/HDL ratio
Test time 2 minutes
Sample type Whole blood (capillary, venous), serum or plasma
Measurement range TC: 100-500 mg/dL (2.59-12.93 mmol/L)
HDL: 15-120 mg/dL (0.39-3.10 mmol/L)
TG: 45-650 mg/dL (0.51-7.34 mmol/L)
Reference values TC<20 mg/dL (<5.2 mmol/L)
HDL≥40 mg/dL (≥1.0 mmol/L)
TG<150 mg/dL (<1.7 mmol/L)
LDL<130 mg/dL (<3.4 mmol/L)
Units of measurement mg/dL, mmol/L
Operating temperature 15-40ºC
Storage temperature Meter: 0-50ºC; test device: 2-30ºC
Test device self life 18 months
Connectivity Mini USB
Memory 200 records with date/time
VivaDiag Lipid Testing System Operation Video
