Real-Time PCR Detection System Fast / Accurate / Portable
Continuous innovation, premium quality, comprehensive management and reputable service!

Not Available for Sales in the US

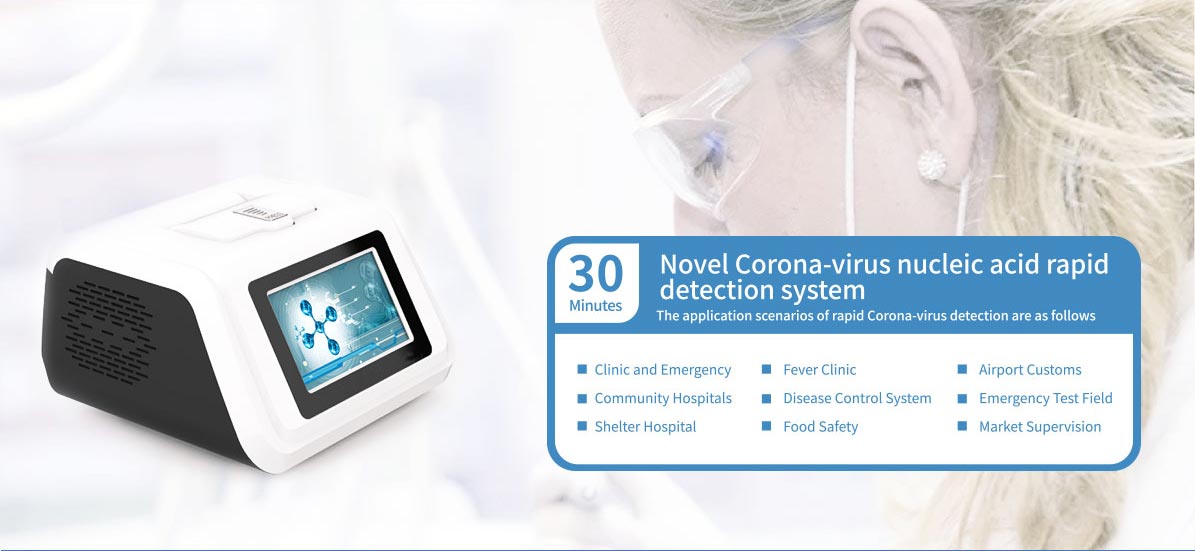

Real Time PCR Detection System

Product Introduction

This product applies "real time quantitative PCR technology" in combination with independently developed "real-time dynamic precise temperature control technology", which can be used in various fluorescent quantitative PCR detection projects to achieve rapid nucleic acid detection. with strong functions and flexible operation,the PCR amplification test of DNA and RNA could be completed in a compact and portable mode.The reverse antipollution design with special design can effectively avoid the pollution caused by the accidental bounce of the hot cover.The simplified experimental operation process combining with the efficient rapid PCR reagent provide a perfect solution for Corona-virus detection project.

Product Features
  • Small, light and portable
  • Four fluorescence channels with open system for a variety of needs
  • High resolution TFT display, no needs of PC connection
  • Real-time dynamic accurate temperature control, to achieve efficient heating and cooling

Specification

Name Real-Time PCR Detection System
Capacity 8/16*0.2 mL (5-100 μL), 8 stripe tubes
Test dynamic range 10-1010 Copies
Fluorescent dyes F1: FAM, SYBR Green I ; F2: HEX, VIC, JOE, TET, YELLOW; F3: ROX, F4: CY5
Operation system LED+PD
Hot-lid temperature 30℃-110℃
Detection reagent Open system (PCR, LAMP, RPA, etc.)
Temperature range 30℃-100℃
Uniformity ≤0.1℃
RFI CV≤0.5% (repeatability of fluorescence intensity)
Dimensions (L*W*H) 300*260*180 mm

Not Available for Sales in the US
