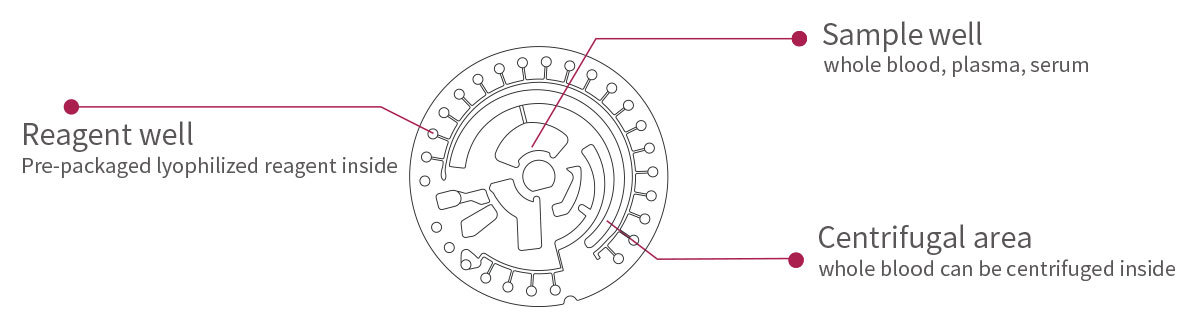

Microfluidic disc

Specifications

Test principle Photoelectric colorimetry
Test platform Centrifugal microfluidic
Sample type Whole blood, plasma, Serum
Sample volume 140 μL
Reagent type Lyophilized reagent
Reagent storage condition 2-8 ℃(35.6-46.4 ℉)
Reagent shelf life 12 months
Reagent package 1 test/pouch, 10 tests/kit
Test time ≤13 min
Printer Built-in thermal printer/External printer
Code identification QR code
Barcode scanner Available(provided with analyzer)
Connection WIFI, USB
Screen size 5.0 inch color touch screen
Supply voltage AC 100V-240V, 50-60HZ
Size/Weight 270×180×155 mm(10.6*7.1*6.1")/3 kg(6.6lbs.)
Test principle Photoelectric colorimetry
Test platform Centrifugal microfluidic
Sample type Whole blood, plasma, Serum
Sample volume 140 μL
Reagent type Lyophilized reagent
Reagent storage condition 2-8 ℃(35.6-46.4 ℉)
Reagent shelf life 12 months
Reagent package 1 test/pouch, 10 tests/kit
Test time ≤13 min
Printer Built-in thermal printer/External printer
Code identification QR code
Barcode scanner Available(provided with analyzer)
Connection WIFI, USB
Screen size 5.0 inch color touch screen
Supply voltage AC 100V-240V, 50-60HZ
Size/Weight 270×180×155 mm(10.6*7.1*6.1")/3 kg(6.6lbs.)

Test Items

Liver function TB, ALB, *GLO, ALB/*GLO, ALT, AST, GGT, ALP, TBIL, DBIL, *IBIL General chemistry 8 GLU, AMY, CRE, UREA, K + , Na + , Cl - , CO 2
Glucose and lipid TG, CHOL, HDL-C, *LDL-C, GLU, # GSP General chemistry 9 TP, ALB, TBIL, CRE, UREA, GGT, AST, ALT, GLU, *GLO, ALB/*GLO
Renal function ALB, CRE, UREA, UA, Ca 2+ , PHOS, CO 2 General chemistry 13 TP, ALB, ALT, AST, TBIL, DBIL, UA, UREA, CRE, GLU, TG, CHOL, HDL-C*IBIL, *LDL-C, *GLO, ALB/*GLO
Electrolyte 7 K + , Ca 2+ , Na + , Cl - , CO 2 , Mg 2+ , PHOS Emergency room 13 AST, CK, CK-MB, LDH, α-HBDH, GLU, AMY, CRE, UA, K + , Na + , Cl - , CO 2
Myocardial enzyme AST, CK, CK-MB, LDH, α-HBDH
*Calculated / # Comming soon
Liver function TB, ALB, *GLO, ALB/*GLO, ALT, AST, GGT, ALP, TBIL, DBIL, *IBIL
Glucose and lipid TG, CHOL, HDL-C, *LDL-C, GLU, # GSP
Renal function ALB, CRE, UREA, UA, Ca 2+ , PHOS, CO 2
Electrolyte 7 K + , Ca 2+ , Na + , Cl - , CO 2 , Mg 2+ , PHOS
Myocardial enzyme AST, CK, CK-MB, LDH, α-HBDH
General chemistry 8 GLU, AMY, CRE, UREA, K + , Na + , Cl - , CO 2
General chemistry 9 TP, ALB, TBIL, CRE, UREA, GGT, AST, ALT, GLU, *GLO, ALB/*GLO
General chemistry 13 TP, ALB, ALT, AST, TBIL, DBIL, UA, UREA, CRE, GLU, TG, CHOL, HDL-C*IBIL, *LDL-C, *GLO, ALB/*GLO
Emergency room 13 AST, CK, CK-MB, LDH, α-HBDH, GLU, AMY, CRE, UA, K + , Na + , Cl - , CO 2
*Calculated / # Comming soon

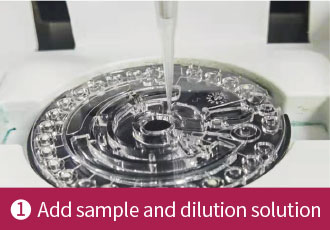

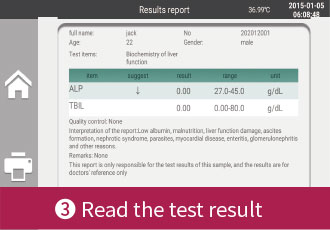

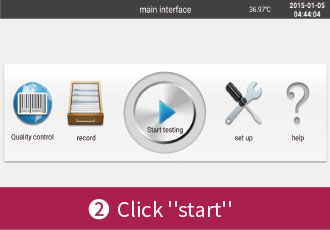

Easy procedures
